Accesorios

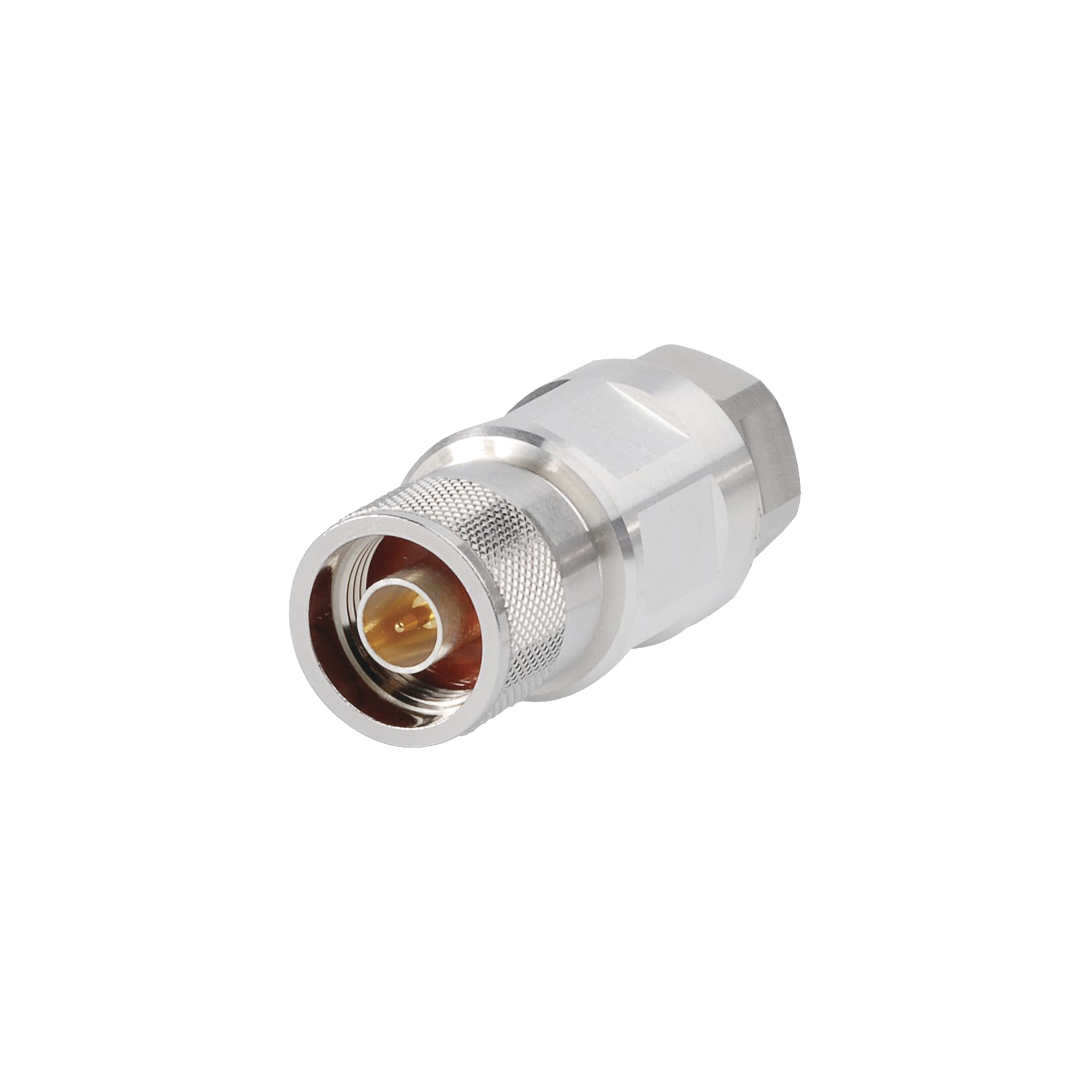

Type N Male for 1/2 in FSJ4-50B cable
Disponibles:
Sin existencias
MARCA: ANDREW / COMMSCOPE / MODELO: F4PNMV2
$1,177.35
Sin existencias
CompararGeneral Specifications
- Interface: N Male
- Body Style: Straight
- Brand: HELIAX®
- Mounting Angle: Straight
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 12000 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical: -120 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 707.00 V
- dc Test Voltage: 2000 V
- Outer Contact Resistance, maximum: 0.30 mOhm
- Inner Contact Resistance, maximum: 2.00 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Average Power: 0.6 kW @ 900 MHz
- Peak Power, maximum: 10.00 kW
- Insertion Loss, typical: 0.05 dB
- Shielding Effectiveness: -110 dB
Dimensions
- Nominal Size: 1/2 in
- Diameter: 23.62 mm | 0.93 in
- Length: 50.80 mm | 2.00 in
- Weight: 163.00 g | 0.36 lb
