General Specifications

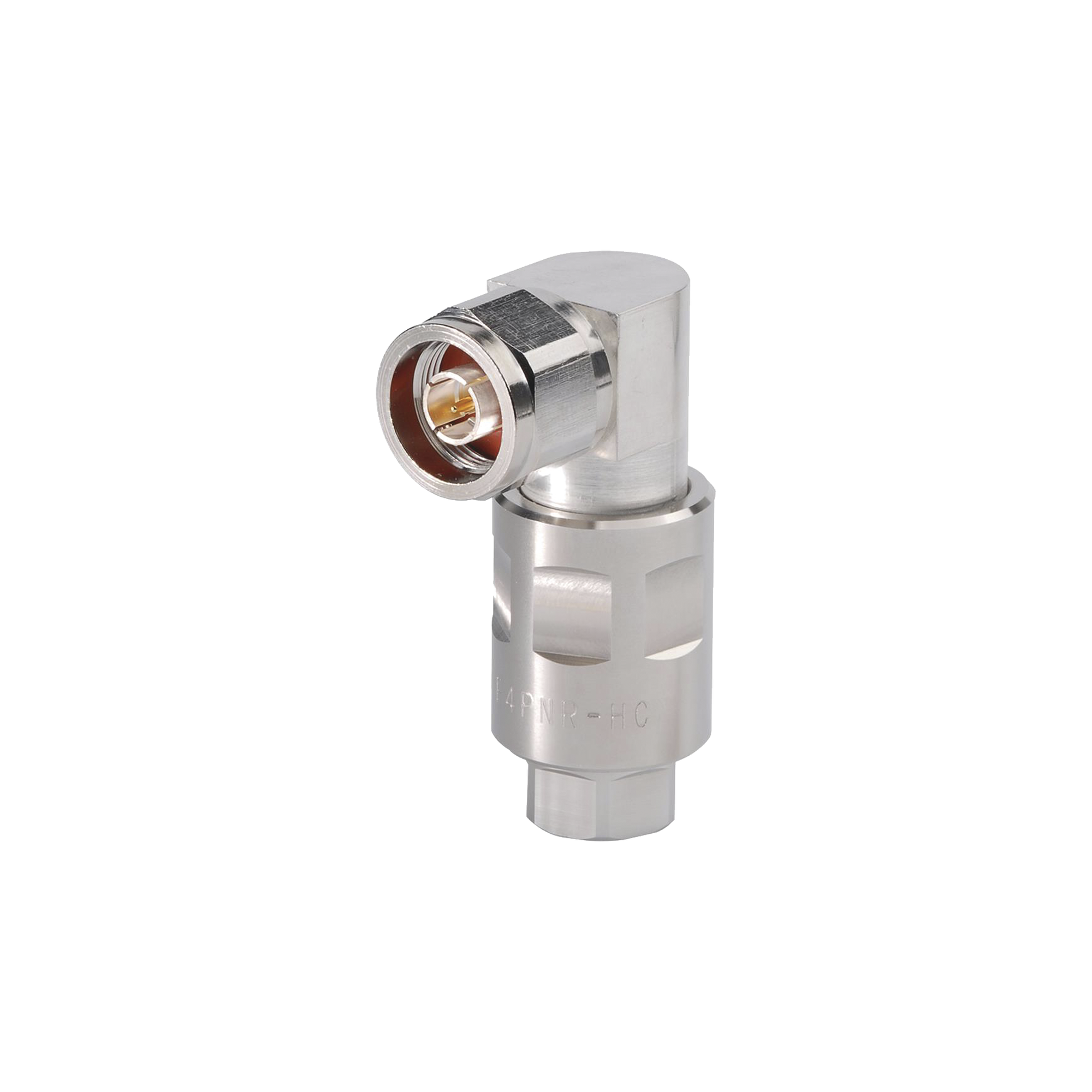

- Interface N Male
- Body Style Right angle
- Brand HELIAX
- Mounting Angle Right angle
Electrical Specifications
- Connector Impedance 50 ohm
- Operating Frequency Band 0 – 4500 MHz
- Cable Impedance 50 ohm
Dimensions
- Nominal Size 1/2 in
- Diameter 26.01 mm | 1.02 in
- Length 71.91 mm | 2.83 in
- Right Angle Length 40.64 mm | 1.60 in
- Weight 185.98 g | 0.41 lb
- Width 25.40 mm | 1.00 in
Environmental Specifications
- Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
- Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
